Internet radio project

My introduction to hardware prototyping

Internet radio demo Click the image to watch a demo video. (has not been created yet)

The internet radio was one of my first serious CAD projects where I attempted to build a fun enclosure for a full featured internet radio. It uses a TTGO V1 display which is a modified ESP32. It looked like a fun board to mess with, but if I were to do the project over I’d have gone with the newest ESP32 chip. (just for the sake of being able to use all the up-to-date libraries).

The radio can:

  1. Act as a bluetooth speaker or BT to 3.5mm adapter
  2. Create a wifi configuration portal
  3. Allow the user to add any internet radio station
  4. Act as a visualizer for music

I was surprised by how few working internet radio project there were. Most of the examples that I found were no longer functional or too limited. I forked a project that I found on youtube, but it was non-functional and I ended up redoing the entire thing with a different audio library.

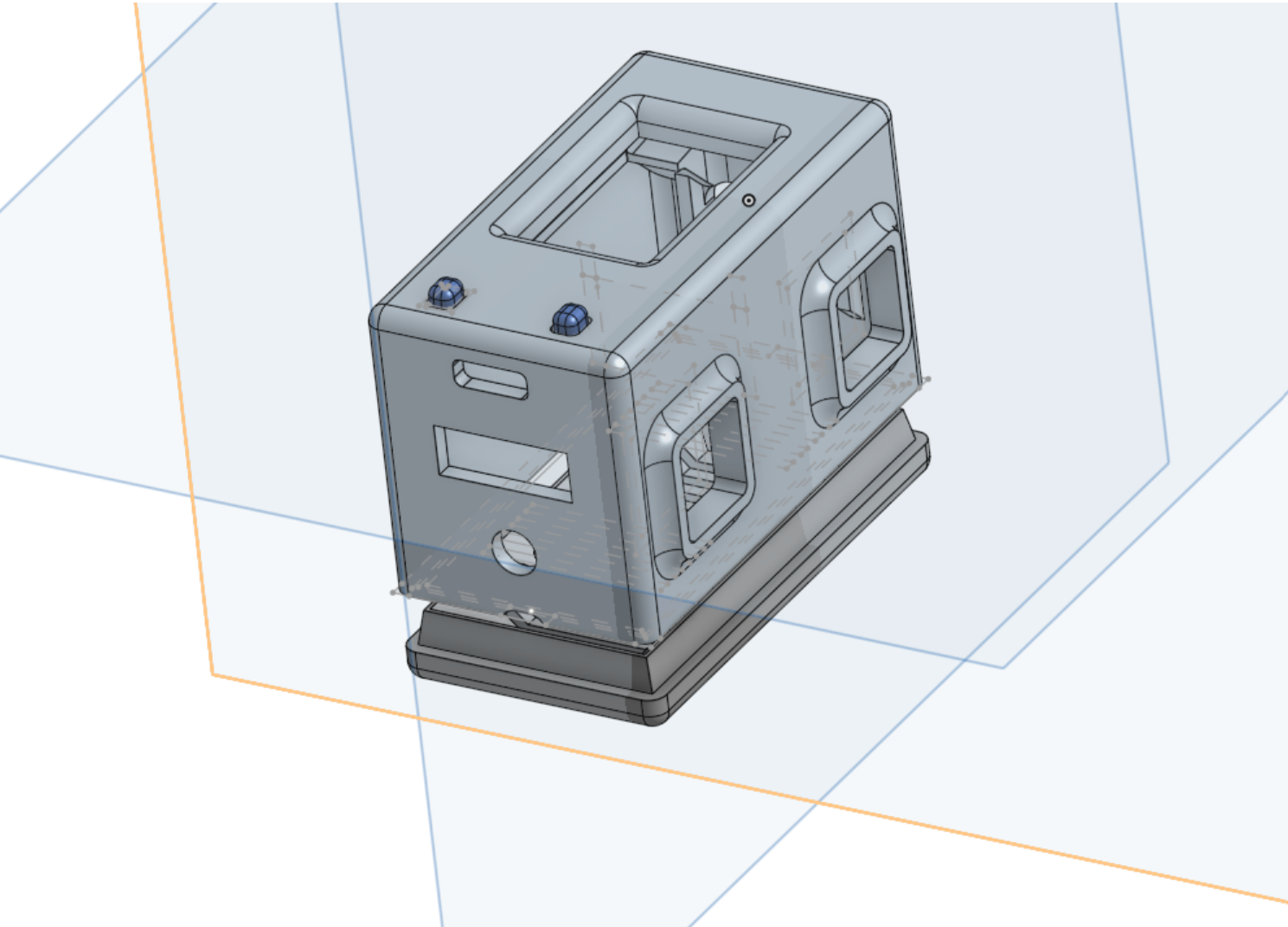

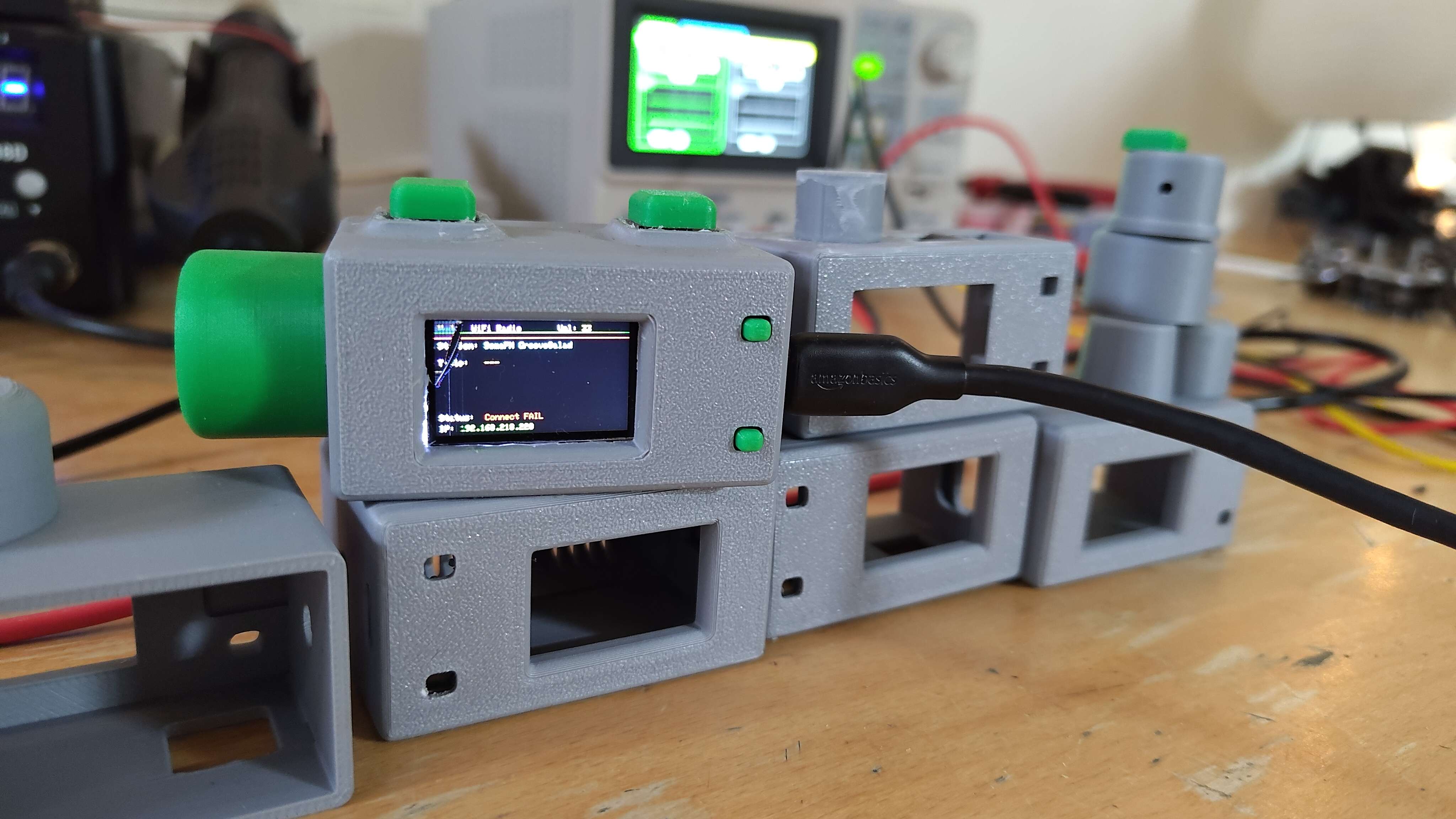

CAD drawing in Onshape I used Onshape for the 3D component of this project, and went through many iterations of the enclosure before I landed on one that was fully usable. I was surprised by how long it takes to find the perfect positioning for all the buttons. I have a newfound respect for simple builds, it takes a lot of time investment to get it right.

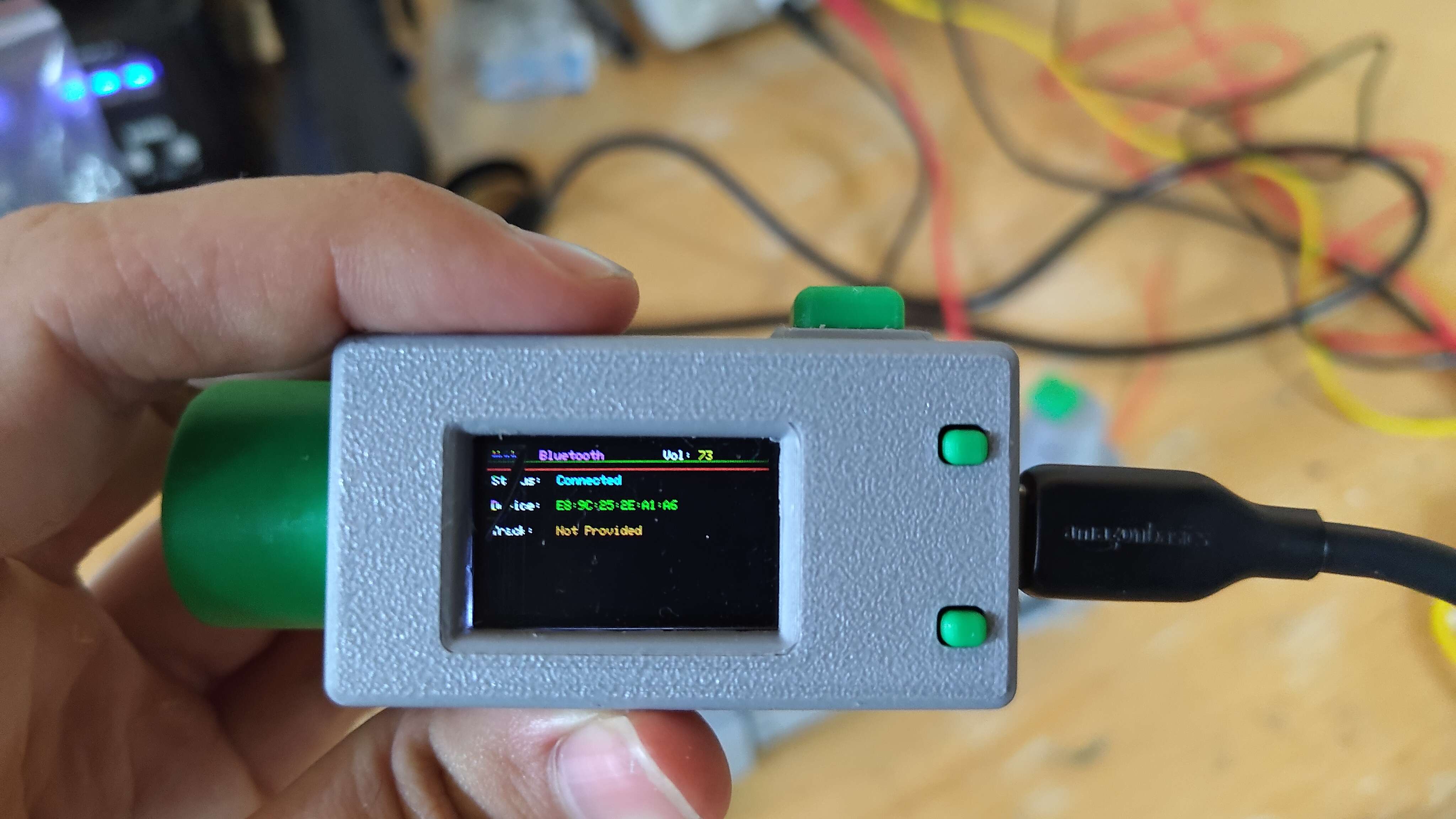

The bluetooth pairing to my phone and pc works flawlessly. Internet radio bluetooth mode

WIP post. more TBA
